PET Felt Baffle System Design: A Practical Guide for Acoustic Ceiling Solutions
Learn how a lightweight PET felt baffle system improves acoustic performance, installation efficiency, and project flexibility.
PET Felt Baffle System Design: A Practical Solution for Modern Acoustic Ceilings
In modern commercial spaces, acoustic comfort has become an important part of interior design. Offices, meeting rooms, schools, restaurants, and public spaces all need effective sound control solutions while maintaining a beautiful appearance.
Among different acoustic products, PET felt baffle systems are becoming increasingly popular because they combine excellent sound absorption, lightweight structure, easy installation, and flexible design options.
However, when designing a complete baffle ceiling system, many different components can be considered. Sometimes, adding more components does not always mean a better solution. A practical design should balance acoustic performance, installation efficiency, appearance, and overall project cost.
From our engineering experience, a well-designed PET felt baffle system should focus on simplicity, reliability, and flexibility.
What Is a PET Felt Baffle System?
A PET felt baffle system is a vertical acoustic ceiling solution made from recycled polyester fiber panels. The baffles are suspended from the ceiling structure and create additional sound absorption areas, helping reduce noise reflection and improve acoustic comfort.

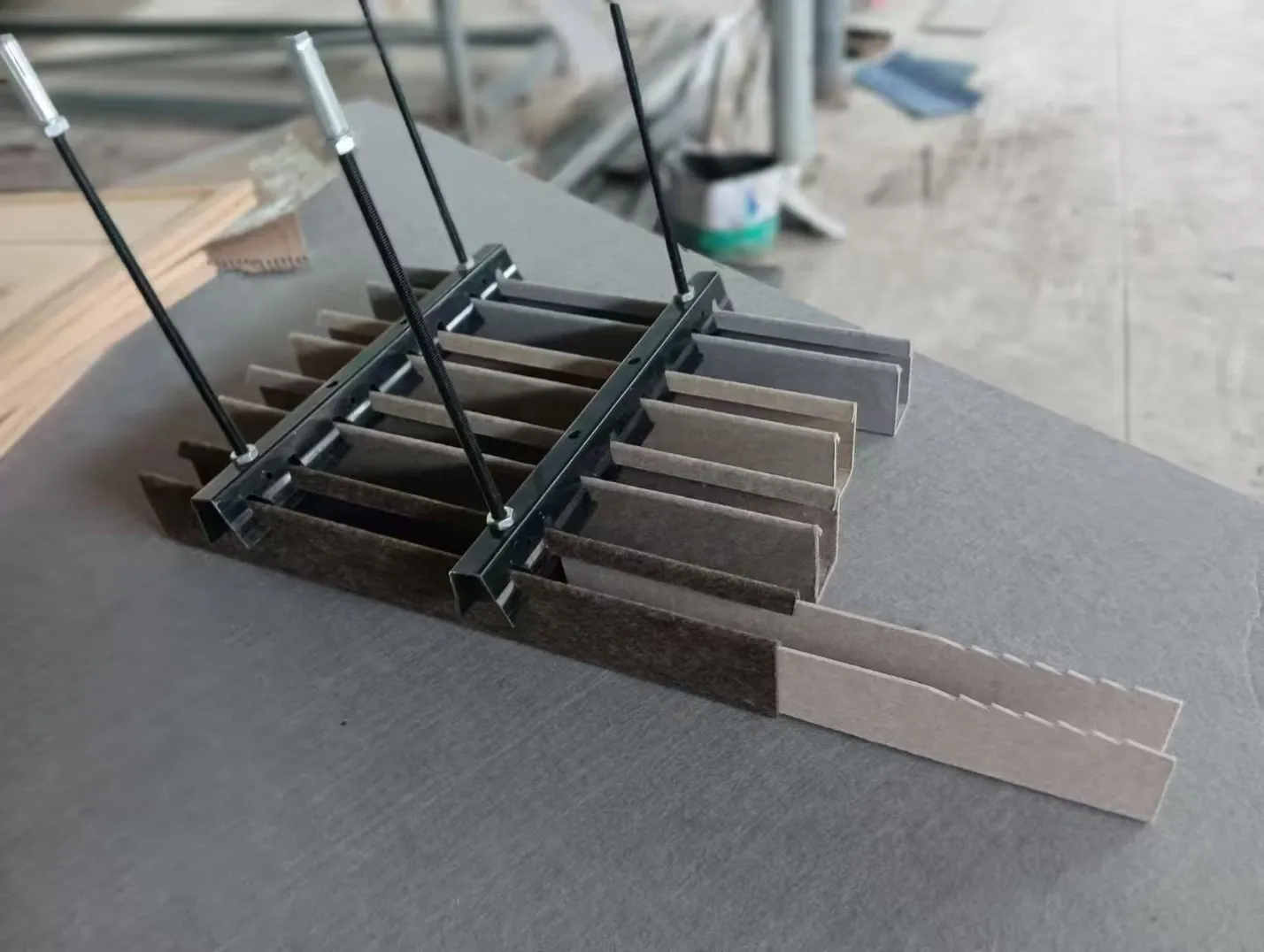

A complete PET felt baffle system usually consists of five main parts:
- Metal track / mounting rail
- PET felt baffles
- Suspension rods
- Baffle connectors
- End caps
Each component has its own function, and the entire system works together to create a stable and visually attractive acoustic ceiling.

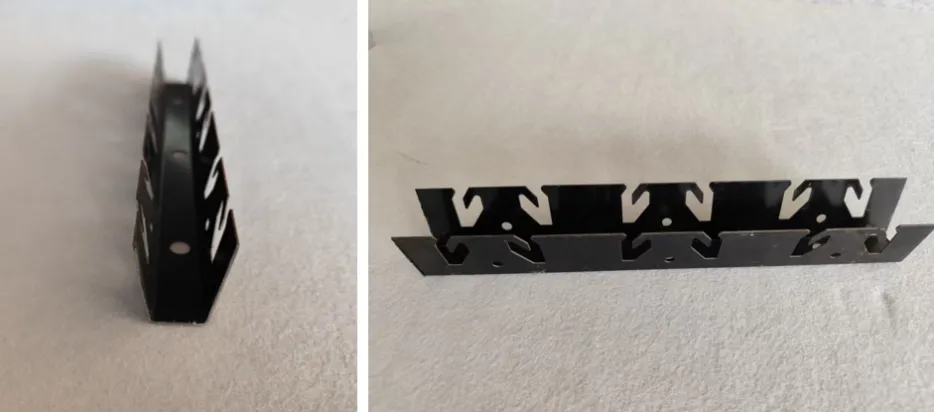

1. Mounting Rail: The Foundation of the System
The mounting rail is the main supporting structure of the baffle system. It connects the ceiling suspension system with the PET felt baffles.
Depending on project requirements, the rail design can be adjusted according to installation conditions, spacing requirements, and ceiling structure.
A good mounting system should be strong enough to support the baffles while keeping the installation process simple and efficient.

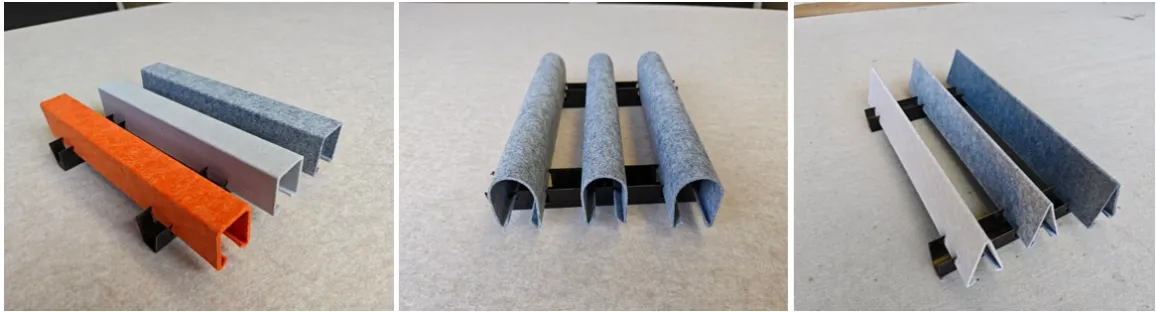

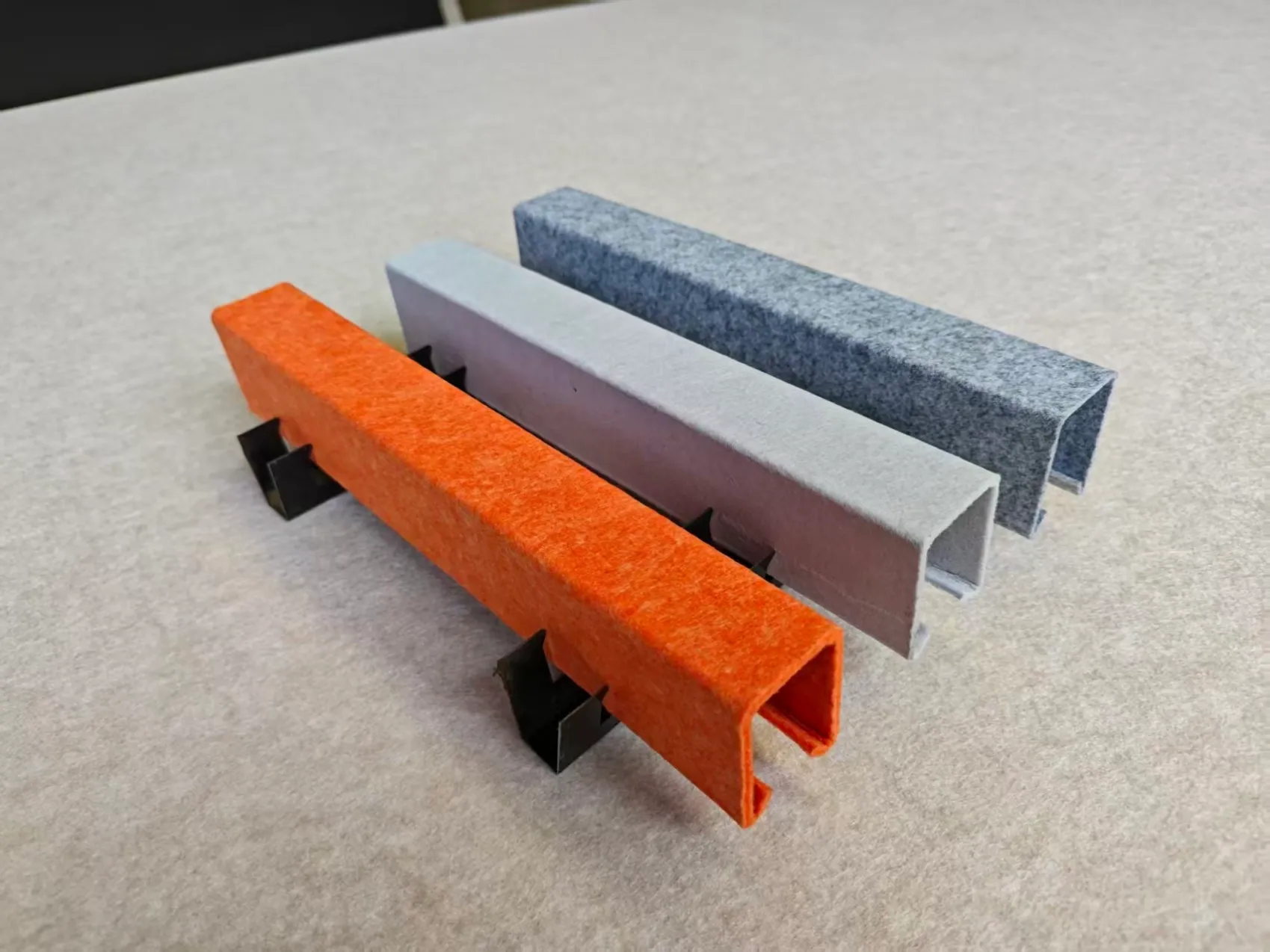

2. Custom PET Felt Baffles: Flexible Design Possibilities
The PET felt baffle is the main acoustic element of the system.
Unlike traditional ceiling materials with limited designs, PET felt panels provide excellent flexibility. The baffles can be customized in different shapes, sizes, and colors according to the project concept.

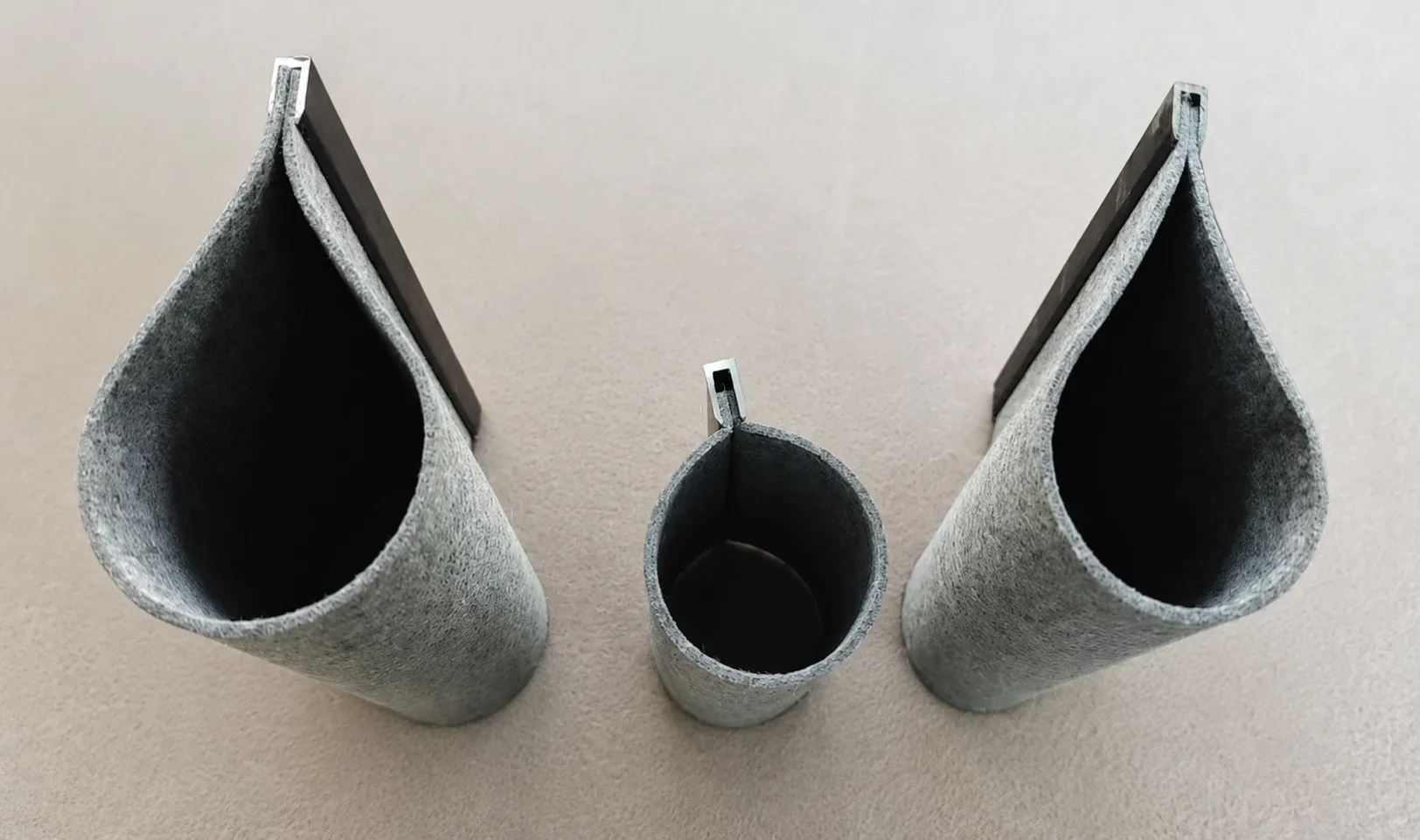

The most common design is a rectangular baffle, but curved, round, and triangular shapes are also possible.
For example, designers can choose:
- Different baffle lengths and widths
- Various thickness options
- Custom colors matching interior designs
- Special shapes for creative architectural concepts
This flexibility allows PET felt baffles to be used not only for acoustic improvement but also as an important interior design element.

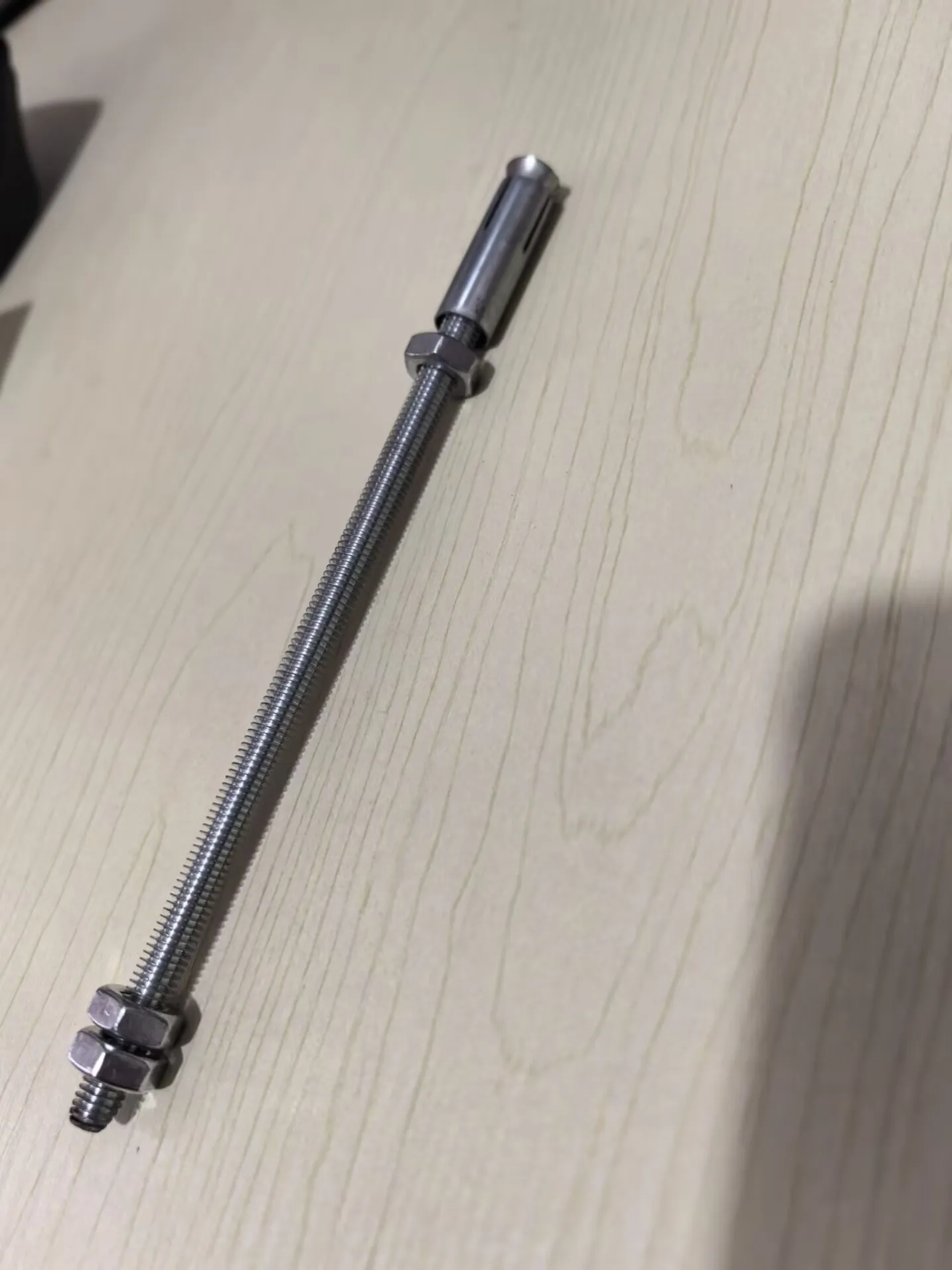

3. Suspension Rods: Easy Height Adjustment
The suspension rod connects the entire baffle system with the ceiling.
Our standard suspension rod length is 300mm. One side includes an expansion screw for ceiling fixation, while the other side uses a threaded connection that allows height adjustment.
This adjustable structure makes installation easier because contractors can fine-tune the baffle height according to different site conditions.
For projects with special ceiling heights, customized suspension solutions can also be considered.

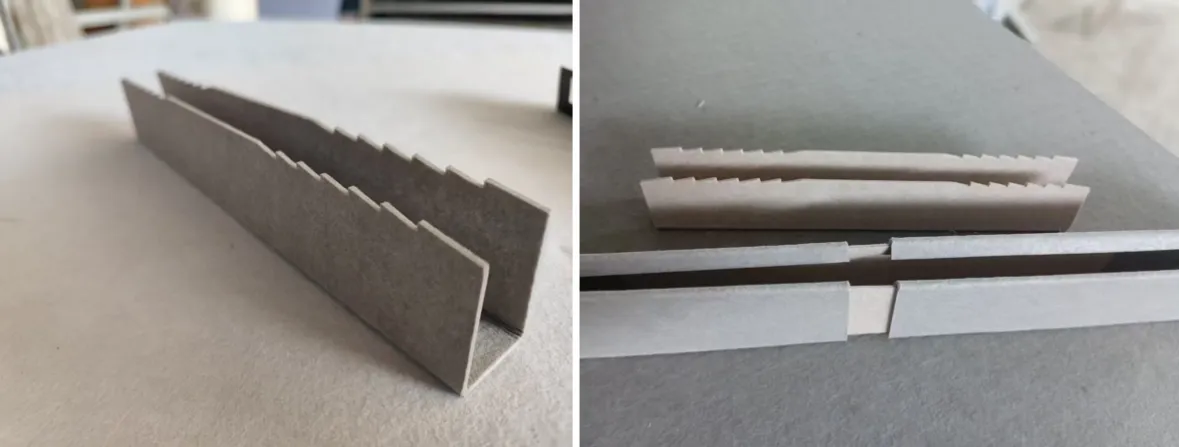

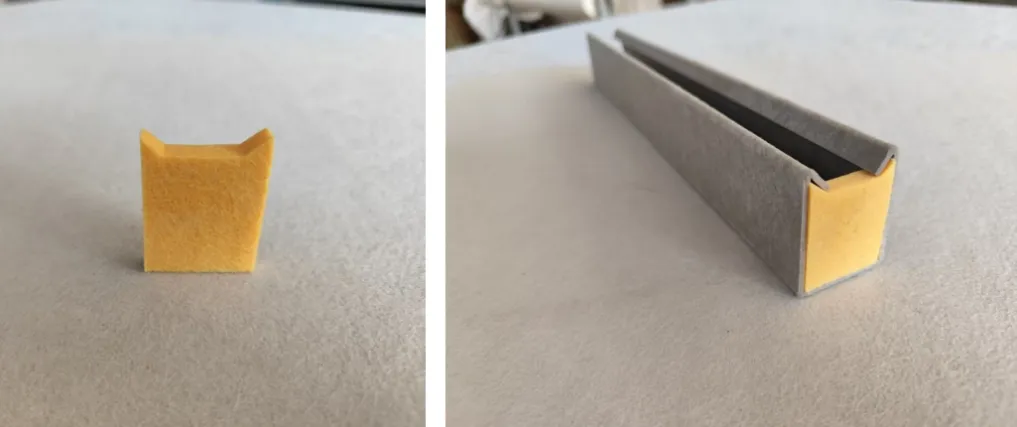

4. PET Felt Connectors: Lightweight and Practical
The connection between each PET felt baffle is an important detail that affects both installation efficiency and appearance.
Some projects may use stainless steel connectors. Although stainless steel provides strength, it can also increase system weight and overall project cost.
For PET felt baffle systems, lightweight solutions can often provide better practical value.
Our PET felt connectors are made from polyester fiber material. They offer several advantages:
- Lightweight and easy to install
- Matching color with PET felt baffles
- No additional visual impact
- Reduced system weight
- Cost-effective solution
The connector design includes a special toothed structure, which helps firmly hold two baffles together and prevents unnecessary movement after installation.
This simple but effective design improves stability while maintaining a clean appearance.
5. End Caps: Improving the Final Appearance
Small details can make a big difference in the final installation quality.

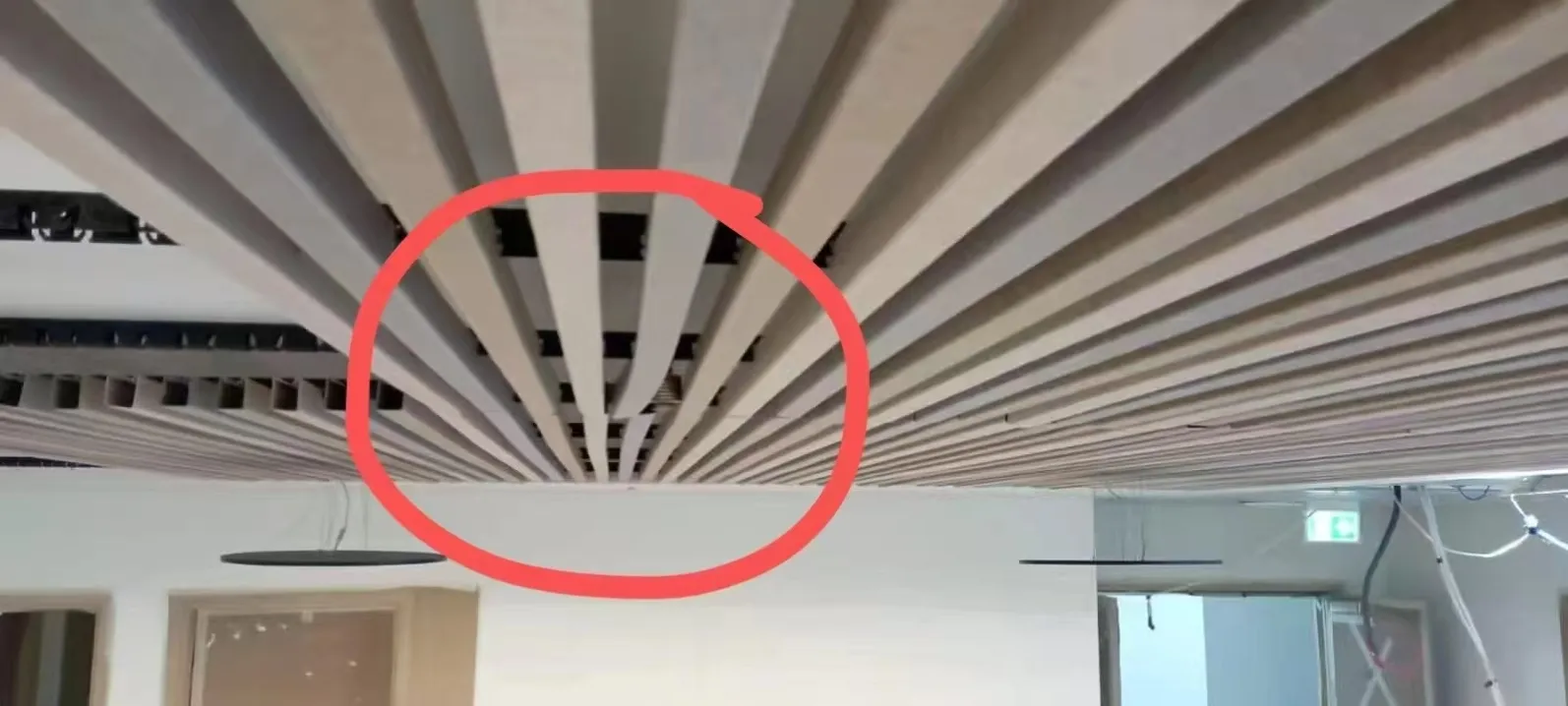

The square end caps are used to cover both ends of the PET felt baffles. This prevents people from seeing the internal hollow area when viewing the system from below or from the side.
The result is a cleaner, more complete appearance.
Why Choose a Simple and Flexible PET Felt Baffle Solution?
A successful acoustic ceiling system is not about having the most components. It is about having the right components.
A practical PET felt baffle system should provide:
Lightweight structure
PET felt material is much lighter compared with many traditional acoustic materials, making transportation and installation easier.
Easy installation
A simple component structure helps contractors save installation time and reduce complexity on site.
Flexible customization
Sizes, shapes, colors, and layouts can be adjusted according to different architectural requirements.
Better project efficiency
By avoiding unnecessary components, customers can achieve reliable acoustic performance with a more reasonable project investment.
At Hengmy, we work closely with architects, designers, contractors, and acoustic solution providers to develop PET felt baffle systems that match real project requirements.
Whether you need standard rectangular baffles or customized acoustic ceiling designs, our engineering team can provide suitable solutions based on your application, installation conditions, and design expectations.
A good acoustic solution should not only improve sound quality. It should also be practical, beautiful, and easy to install.
Looking for a customized acoustic ceiling solution?
Explore our 👉 PET Felt Baffle System for more details about available designs, materials, and installation options.
Need a PET Felt Baffle Solution for Your Project?
A well-designed acoustic ceiling system should balance sound performance, installation efficiency, visual appearance, and project cost.
At Hengmy, we support architects, designers, contractors, and acoustic solution providers with customized PET felt baffle systems for different commercial and architectural applications.
Whether you already have detailed drawings or only a preliminary design idea, our engineering team can help you evaluate the suitable structure, materials, and installation method.
Share your project requirements with us today, and we will provide professional advice and a customized PET felt baffle solution.
📩 Send us your project drawings or specifications, and we will respond with a clear quotation and production suggestion within 24 hours.
